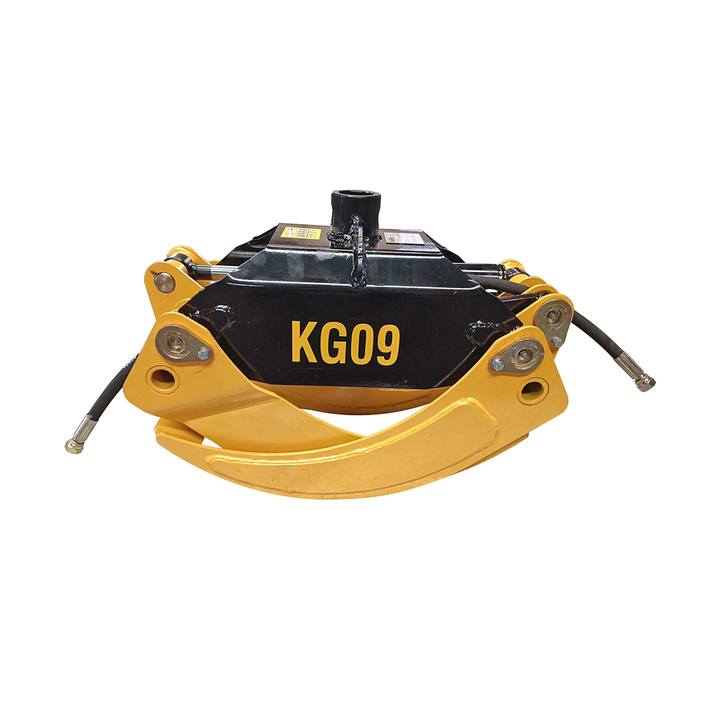

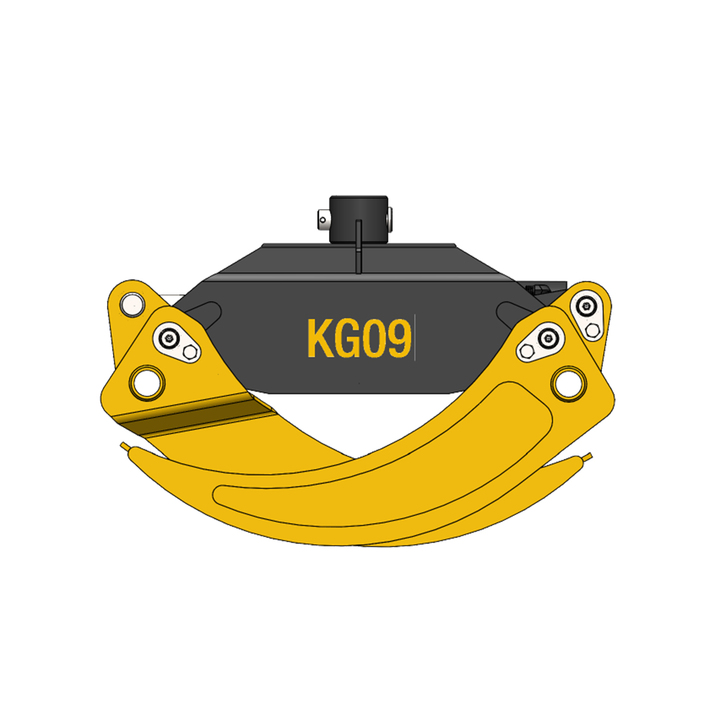

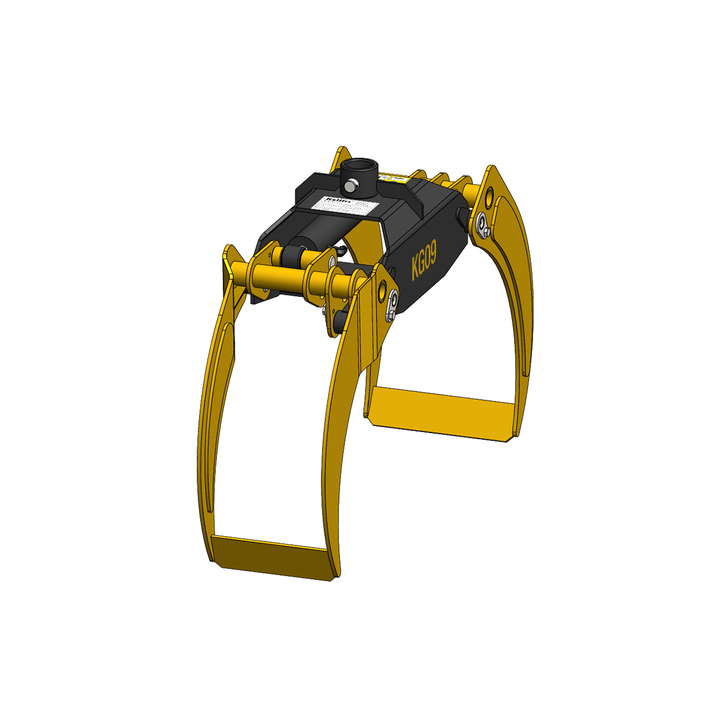

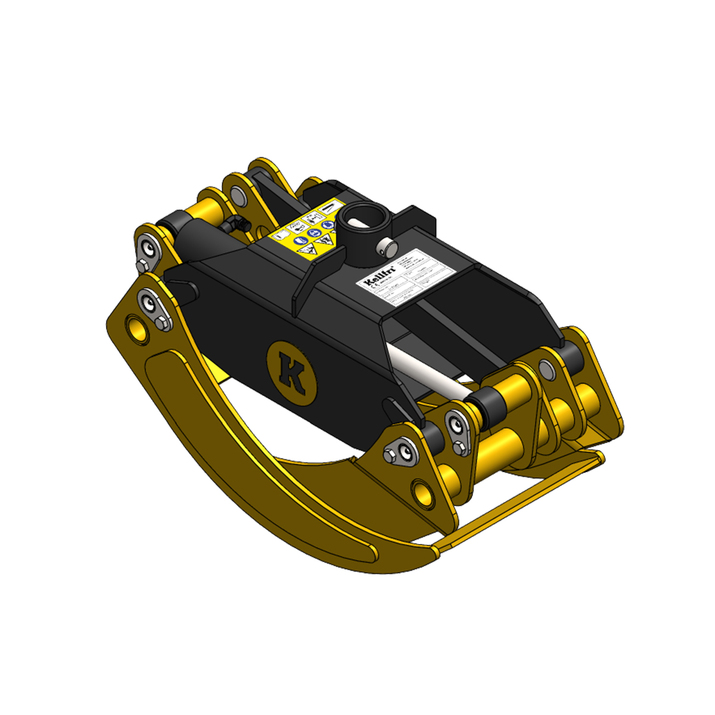

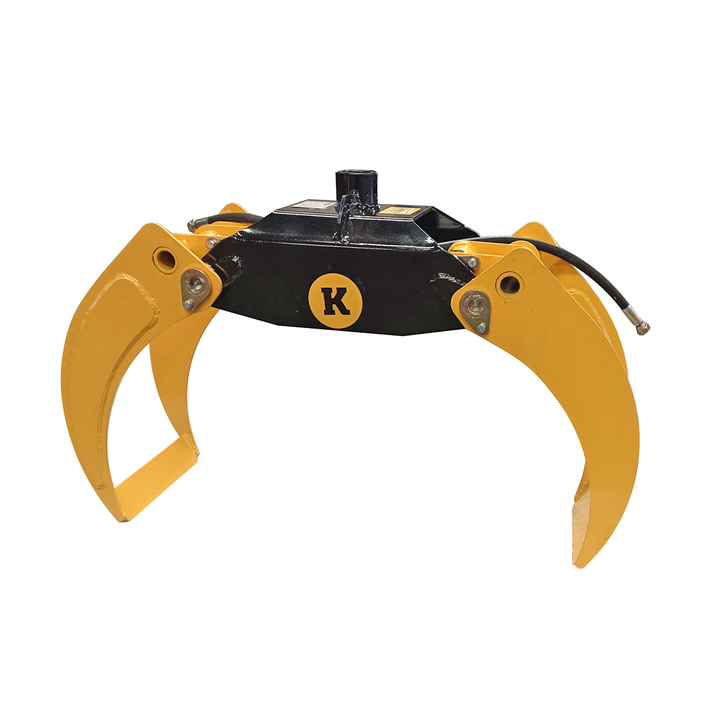

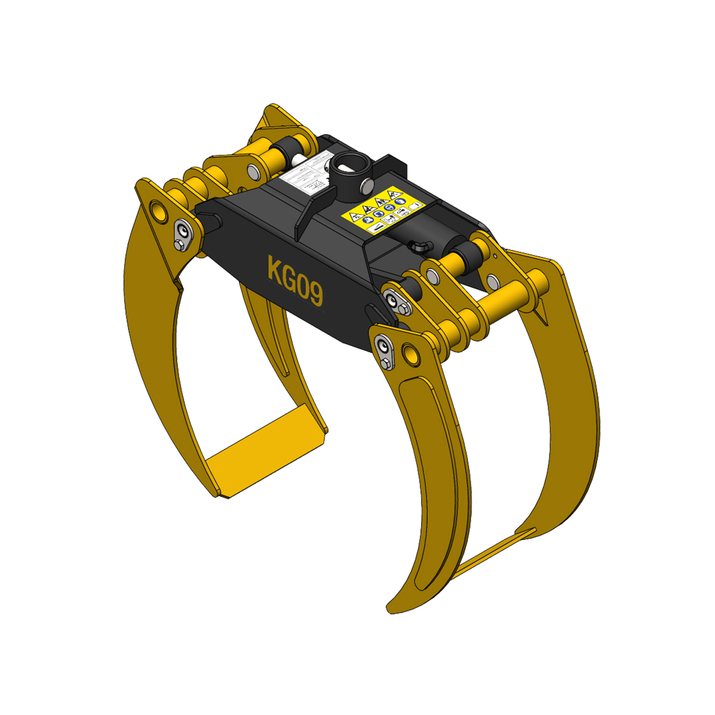

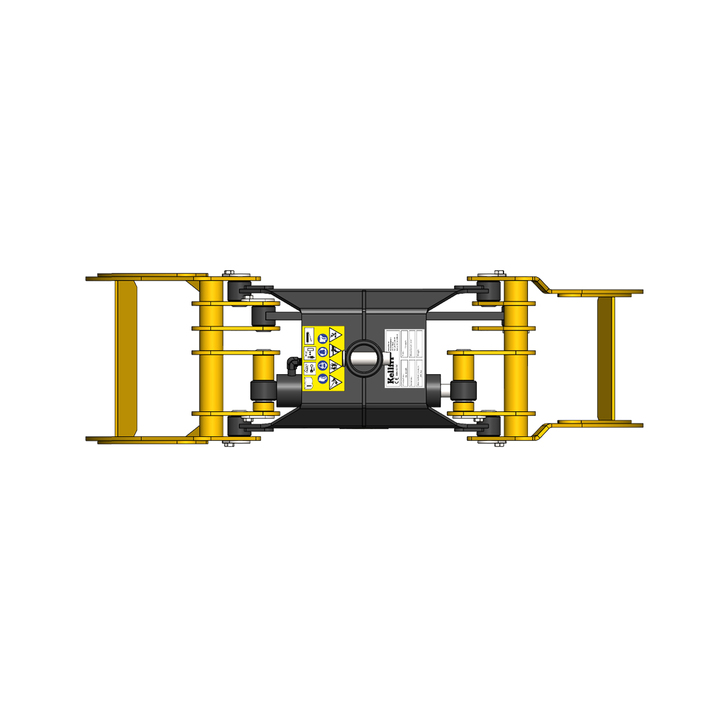

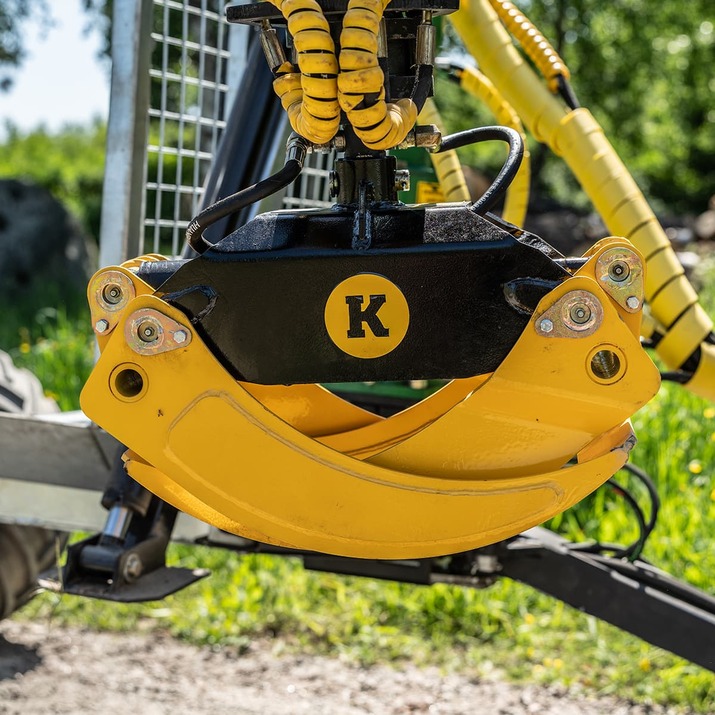

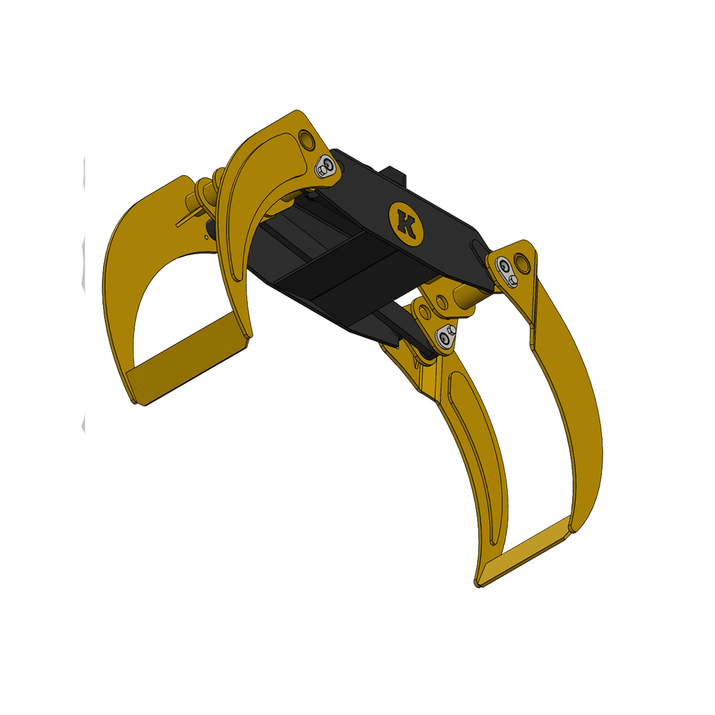

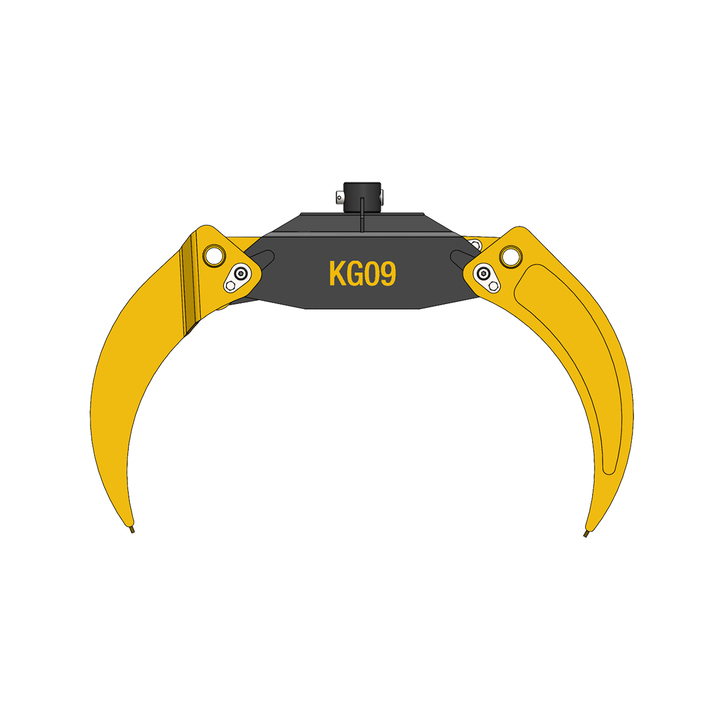

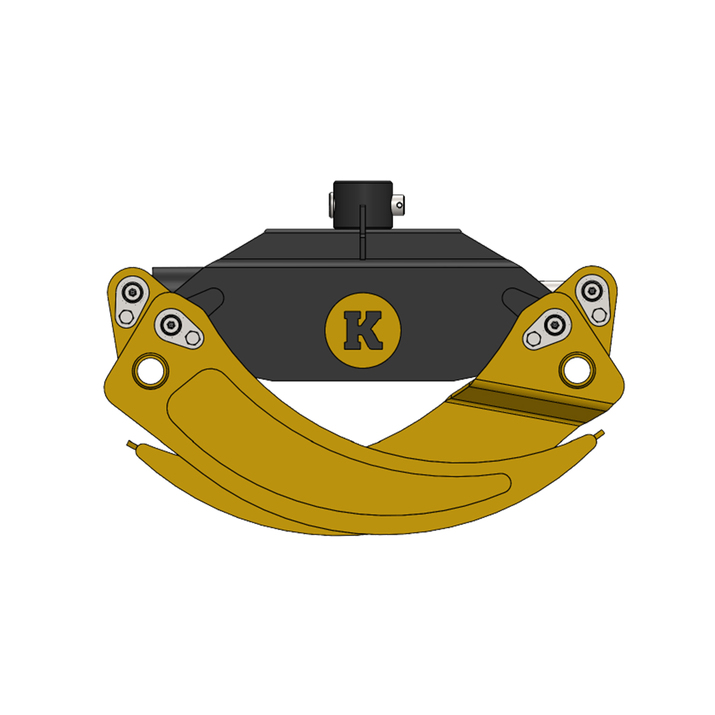

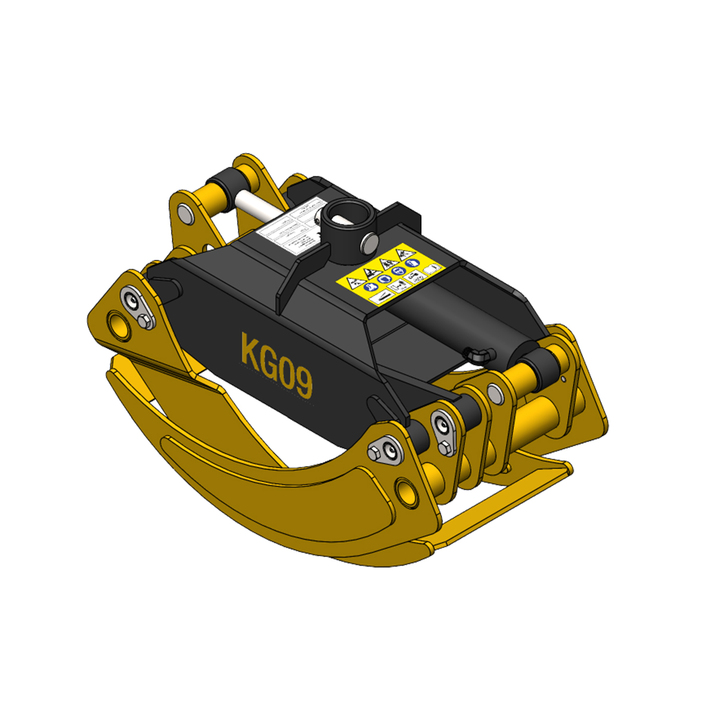

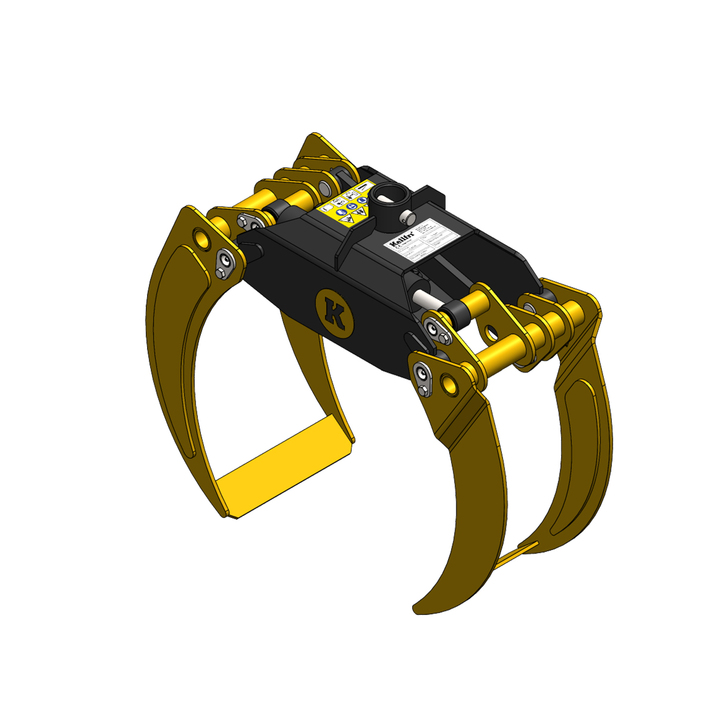

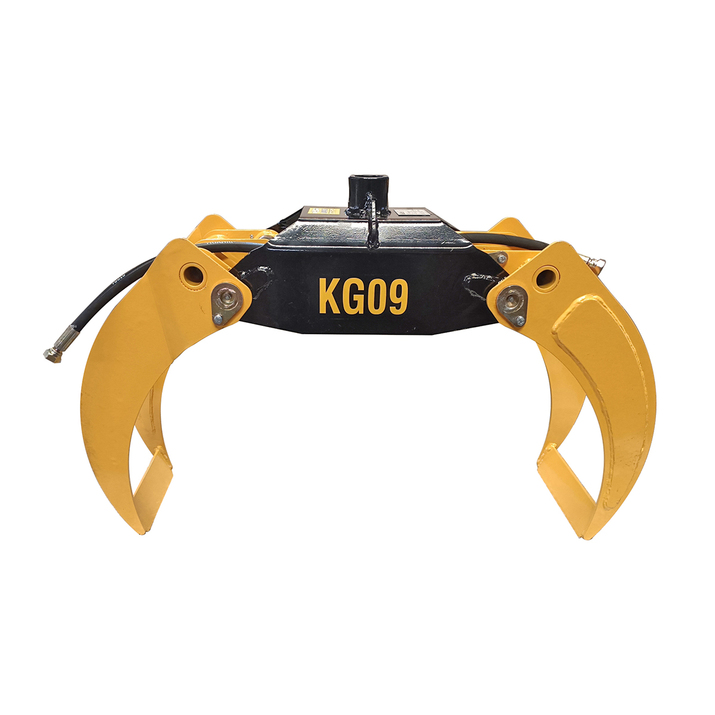

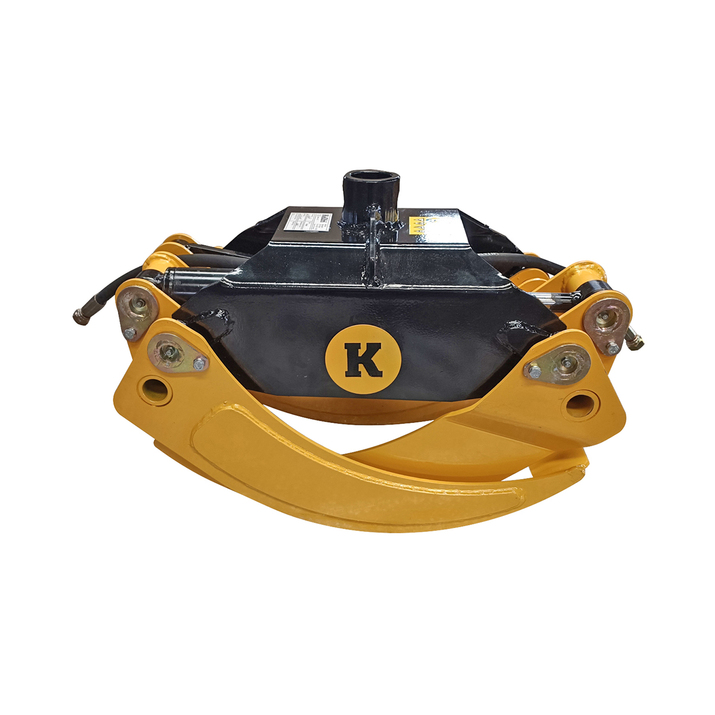

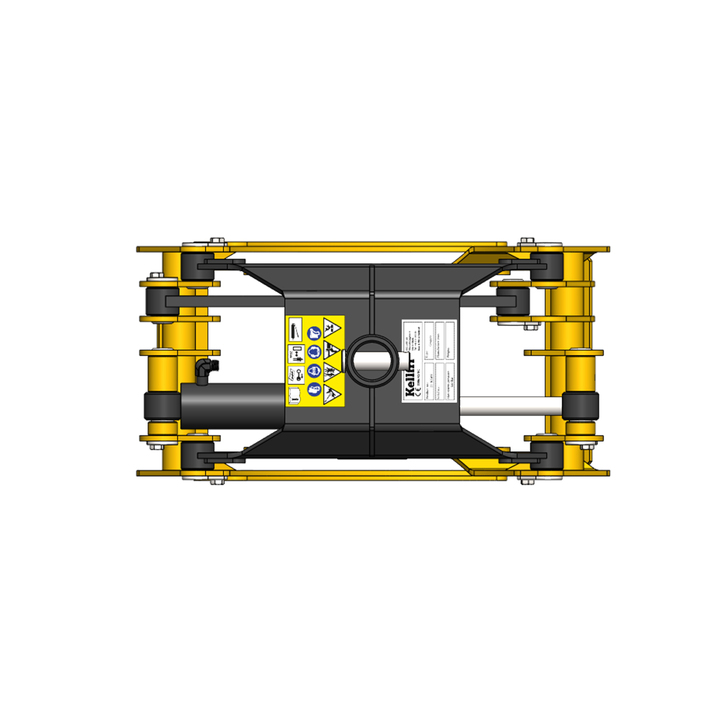

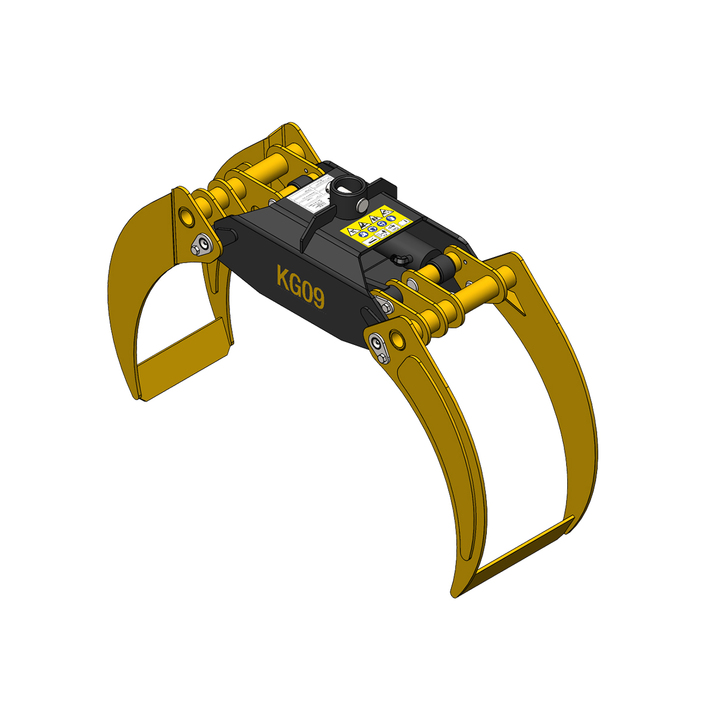

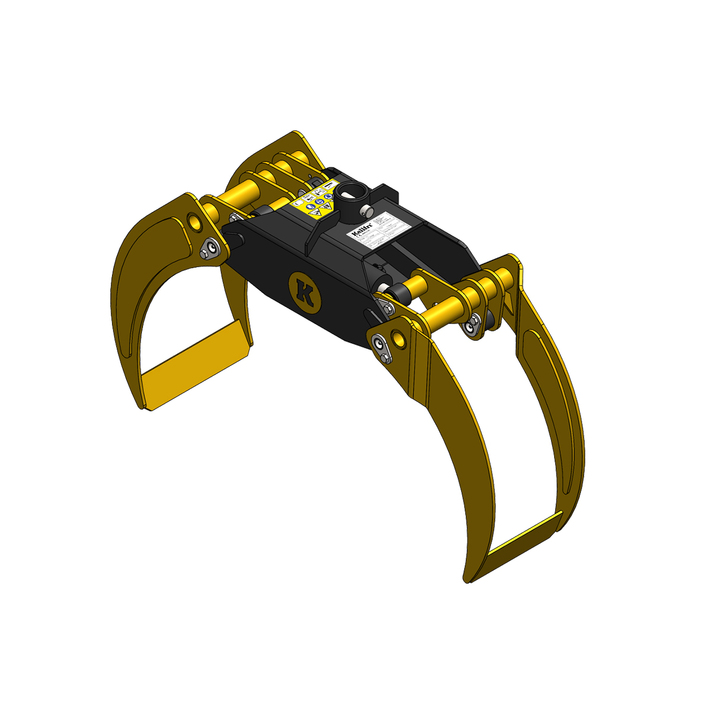

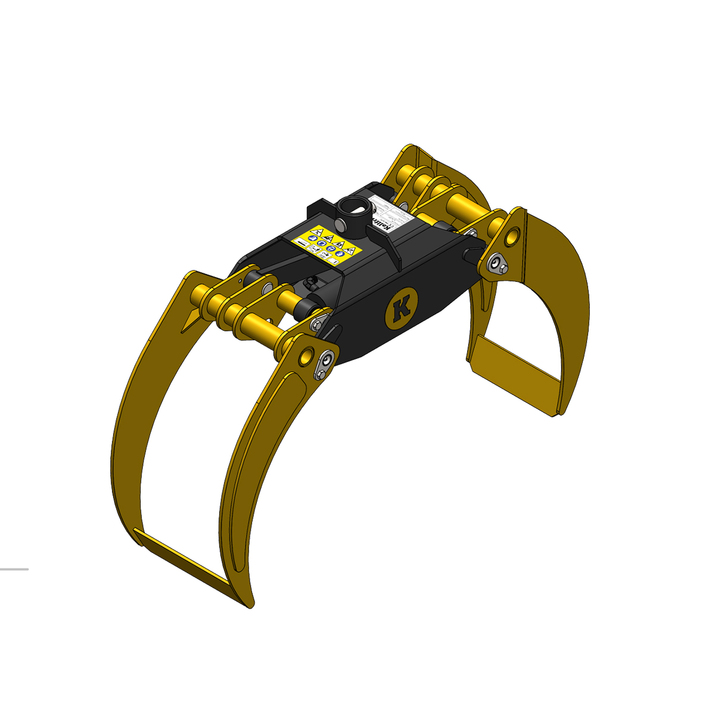

Grapple 09

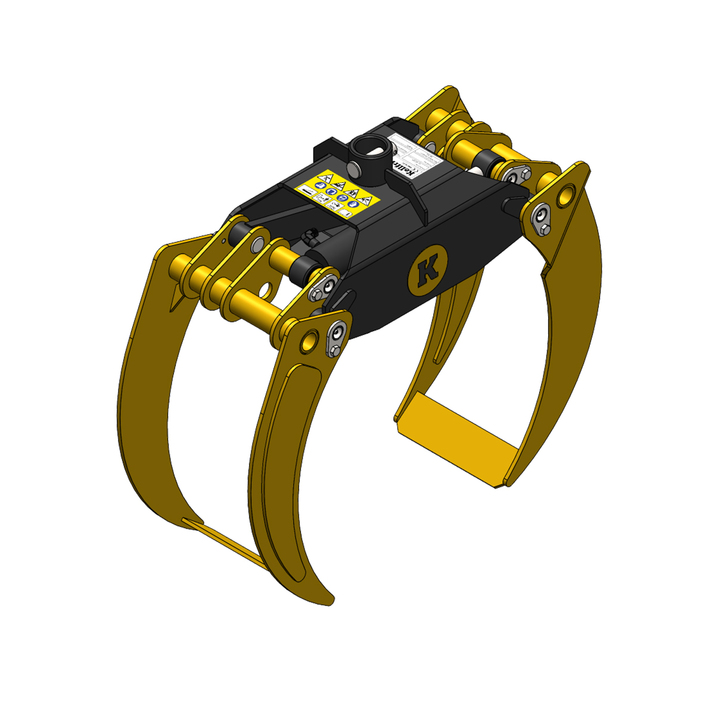

Hybrid grapple designed for both picking and loading

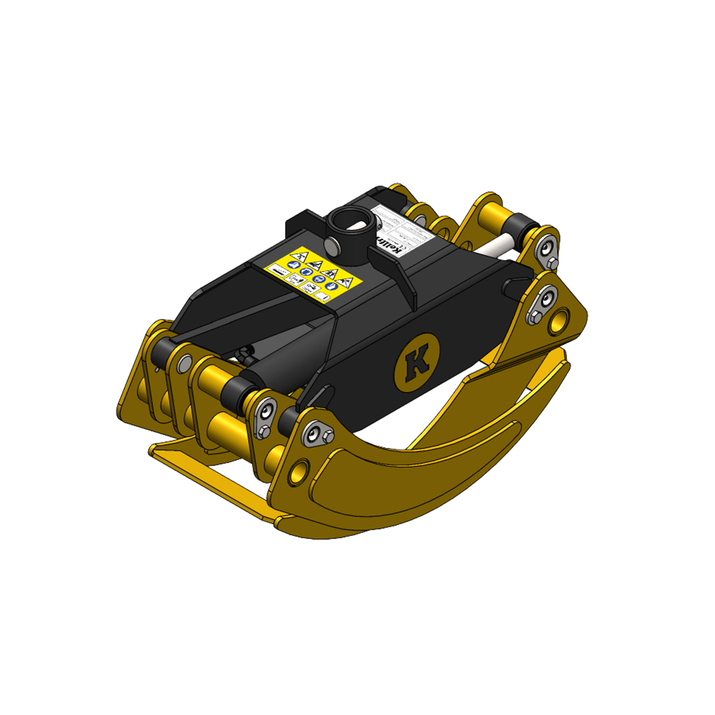

• Heavy-duty chassis/head made of 6 mm plating for a stable design

• Sealed grapple housing protects parallel rods, cylinder, hose and couplings.

• Excellent geometry both for small and large logs

• Double-acting cylinders 40/20-200

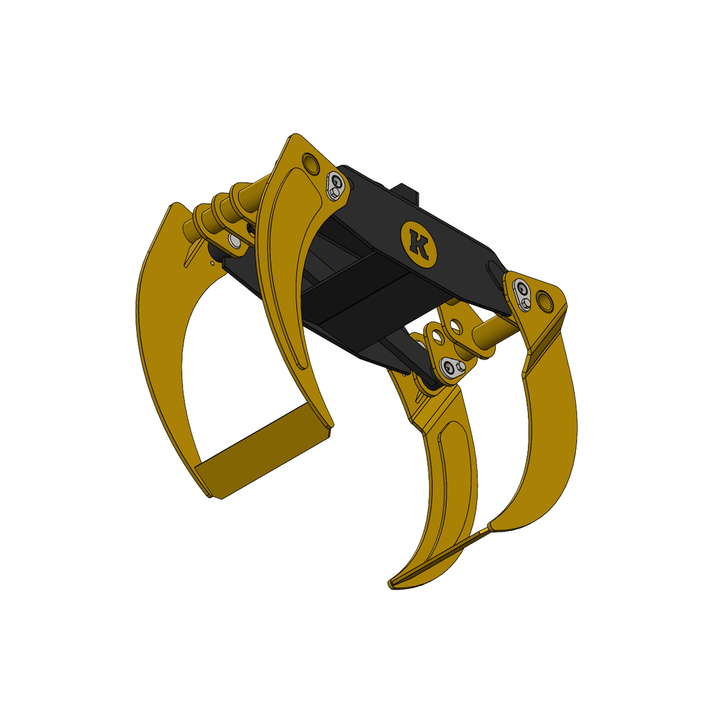

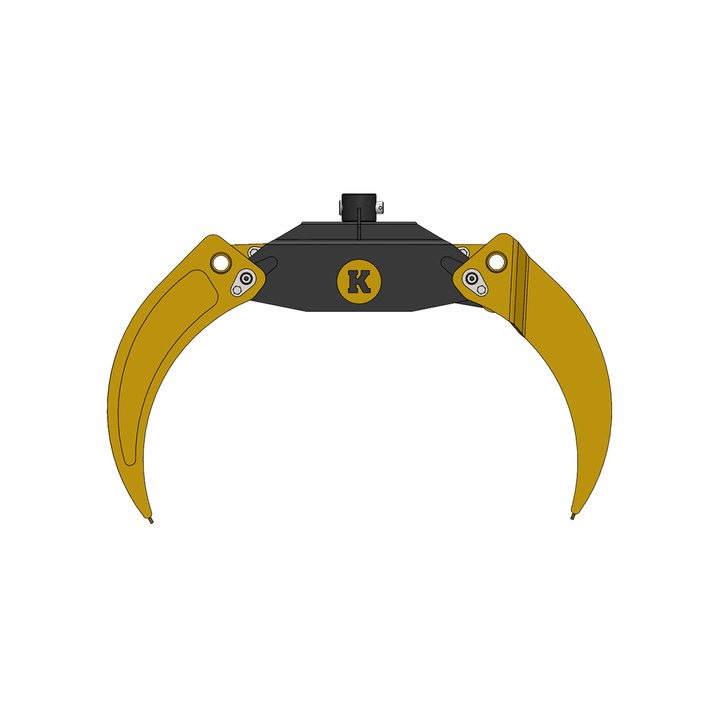

• Max. opening width 700 mm

• Rotator attachment 40 mm

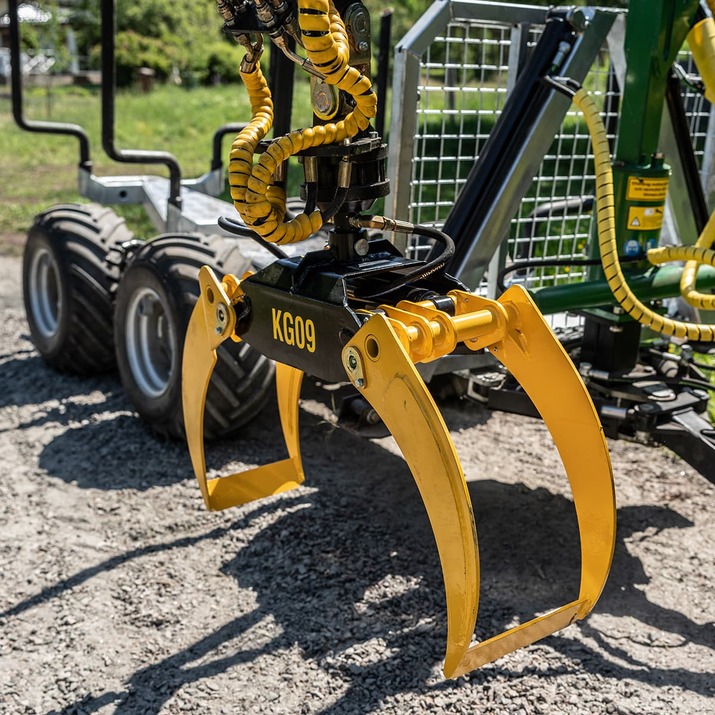

Forestry & Timber grapple suitable for ATV SV20 Forestry trailer

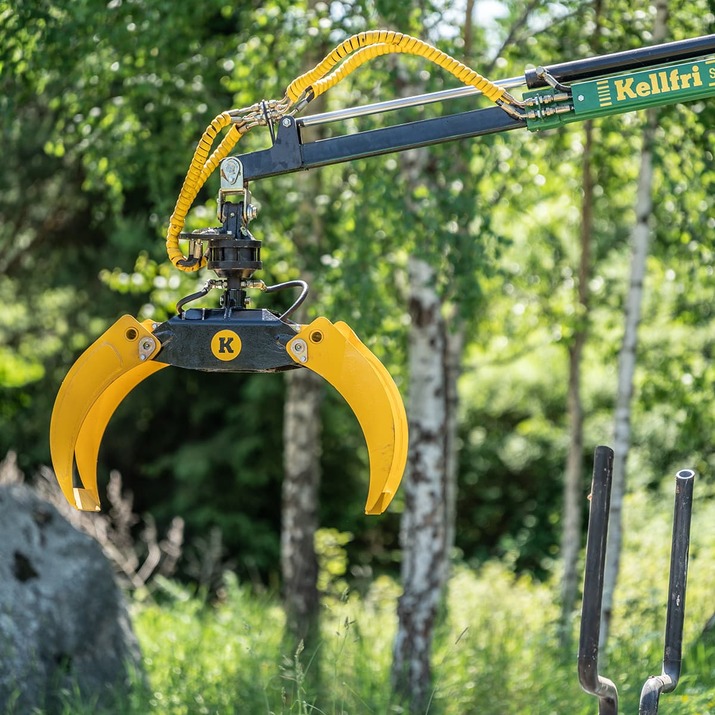

The Hybrid Grapple is an impressive machine designed to meet the needs of users who need a grapple that can handle both picking single logs and lifting heavy loads with ease. The sturdy chassis and head made of 6 mm plating produce a highly stable design, allowing logs to be picked and loaded with high precision and stability.

The grapple housing is also well protected to ensure that the parallel rods, cylinder, hose, and couplings are protected from damage and wear. This helps guarantee long service life and minimal maintenance.

The timber grapple also has an excellent geometry that makes it easy to handle both small and large logs. With a double-acting 40/20-200 cylinder and a maximum opening width of 700 mm, it can handle logs in many different sizes. It also has a 40 mm pin attachment which fits most rotators in the market. With a rotator you can rotate the grapple, and pick and place the load in the right place. See Kellfri’s affordable rotators here.

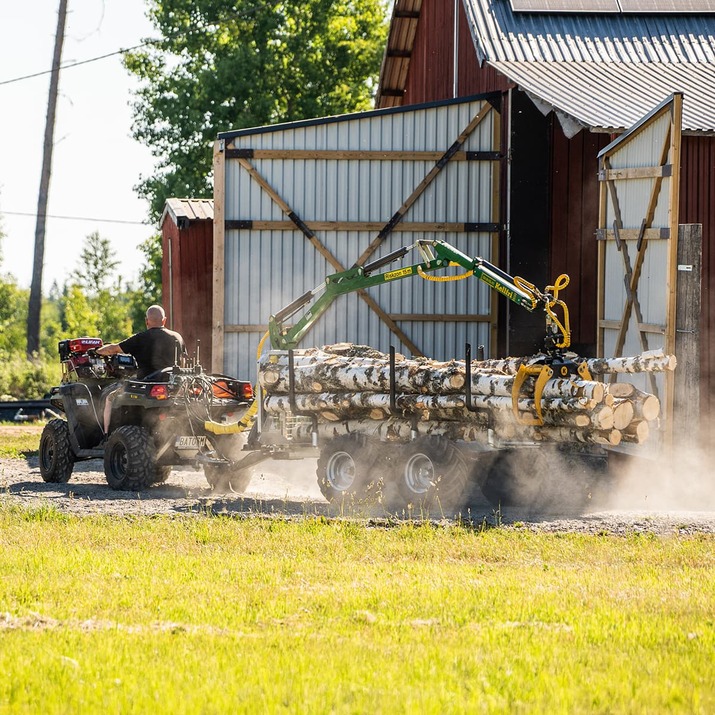

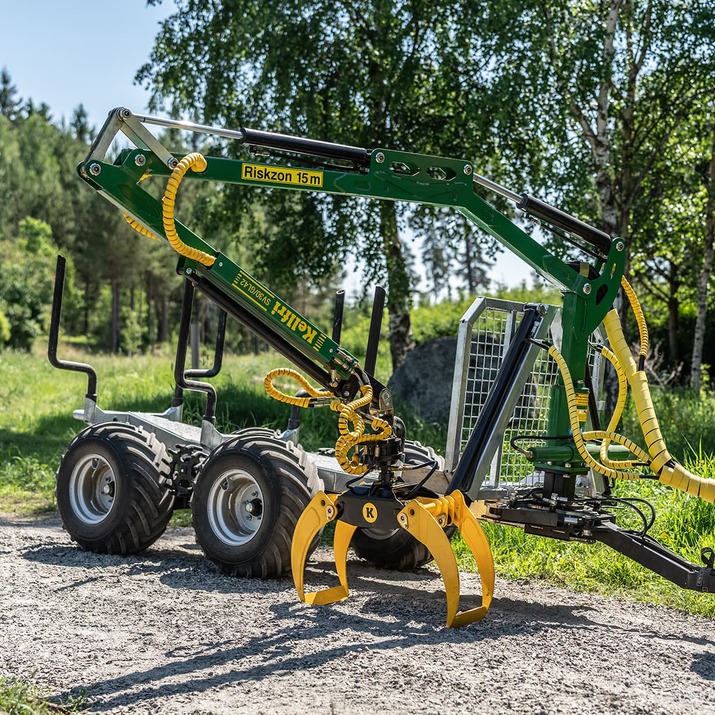

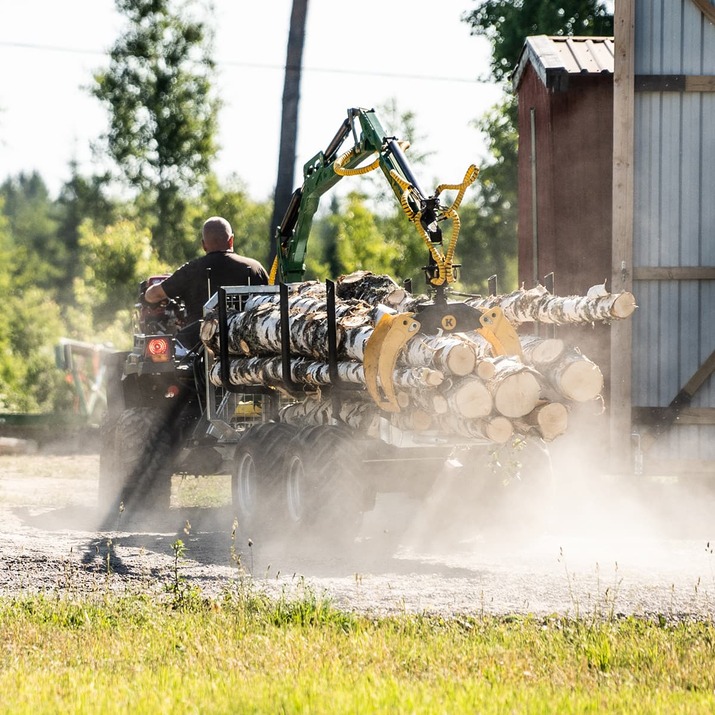

This forestry grapple is perfect for Kellfri’s ATV SV20 forestry trailer, and can also be used with other forestry trailer brands with 40 mm attachment pins. With its own weight of 31 kg, it is simple to use and manoeuvre, providing smooth and efficient operation, unlike many lighter, relatively unmanoeuvrable grapples. In addition, the width of the grip provides excellent grip when picking the ends of the tree, at the extremities of the log.

All in all, the Hybrid Grapple is a robust and powerful grapple designed to meet the stringent demands placed on grapples in forestry. This is the obvious choice for users with ATV forestry trailers who need a grapple that is easy to use, stable and reliable at handling heavy loads and handling logs efficiently.

“Reliable and very strong claw, perfect for heavy duty use and quick lifting.”

Leif, experienced forest owner and ATV forestry trailer user for many years.
