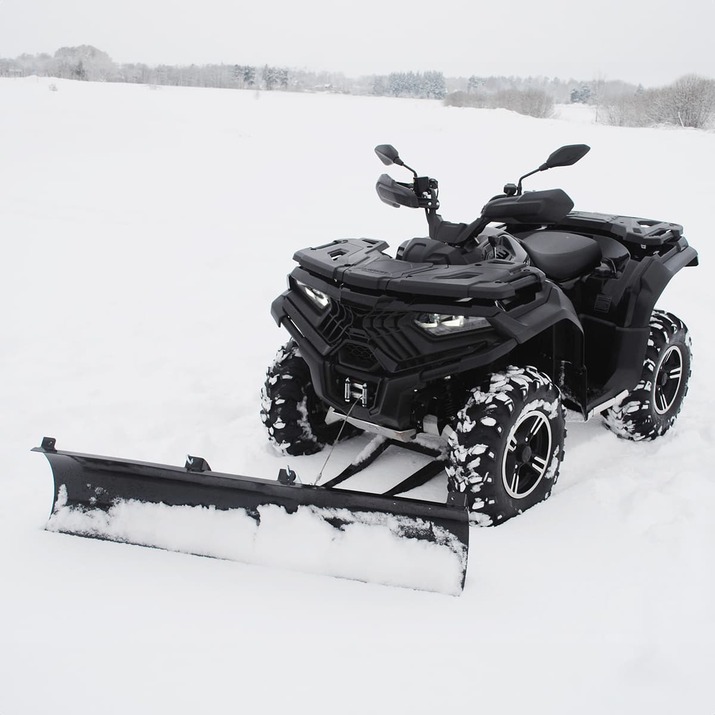

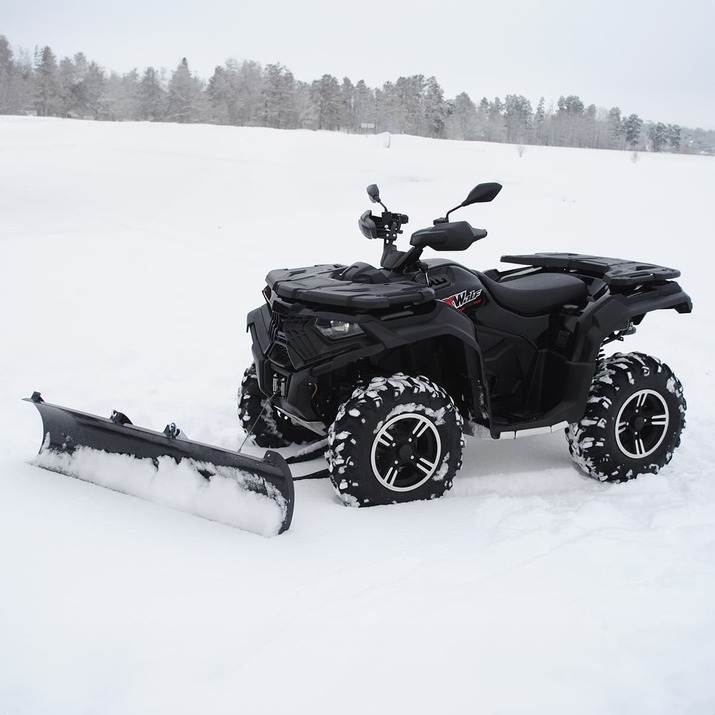

Snow blade ATV

A robust and affordable snow blade for your ATV

• Working width 1500 mm

• Blade height 360 mm

• You raise and lower the blade easily with your ATV winch

• Adjustable lateral blade in 5 working positions

• Universal attachment included

Complete snow blade supplied with universal attachment plate, suitable for ATVs

The base of the blade has replaceable wear steel, which is easy to replace when necessary. The snow blade is spring-loaded, which makes ploughing safer, as the blade collapses if you drive into an obstacle.

You raise and lower the blade easily with your ATV winch.  You adjust the blade laterally to its 5 working positions with a simple hand movement. The working width of 1500 mm means that you cover your ATV even when you angle the blade. The ploughing height can also be set with the accompanying skids. Replaceable wear steel.

The snow blade is supplied with a universal attachment, adjustable skids and smart spring release.

Assembly

Fit the universal attachment supplied in the centre under your ATV’s frame at the same height as the foot plates. Then attach the frame of the snow blade frame to the universal attachment using the two pins supplied.
