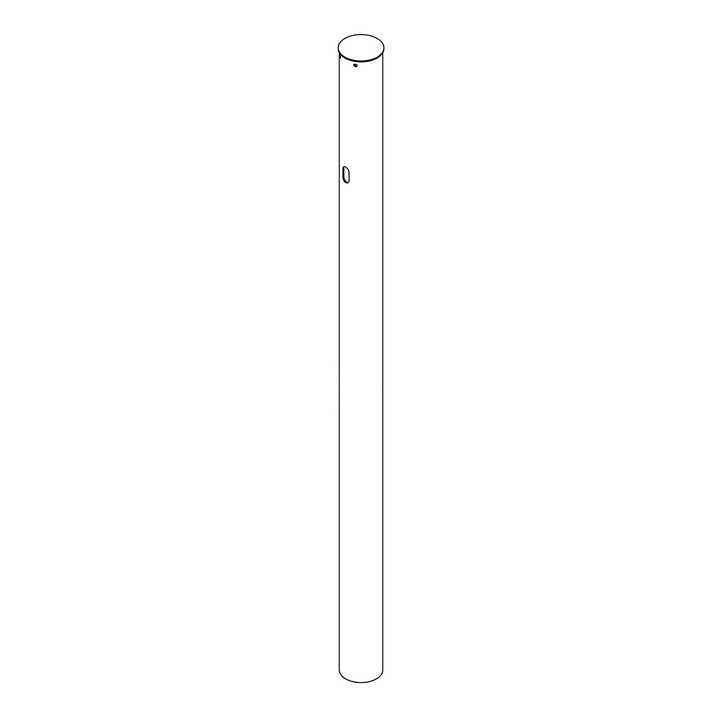

Locking and hanging post for gates, ø 114 x 2000 mm

Locking and hanging post for gates

Vertical post that is attached to a gate or fence and used to hang the gate or door on. The post also has a milled hole for locking, so you can either use it as a hanging post or for locking.

• Flexible attachment (height and angle)

• Easy to assemble

• Easy to adapt c/c distance for different gates

To install a post for a gate, follow these steps:

1. Decide the location for the post. It should be on level on the ground and aligned with the opposite post.

2. Dig a hole deep enough for the post to stand firmly in the ground. The diameter of the hole should be slightly wider than the diameter of the post.

3. Place the post in the hole and make sure it is straight and steady. Use a spirit level to make sure that the post is vertical.

4. Fill the hole around the post with concrete or compact the surrounding soil tightly to secure it in place.

5. Allow the concrete or soil to fully dry or harden before attaching the gate to the post.

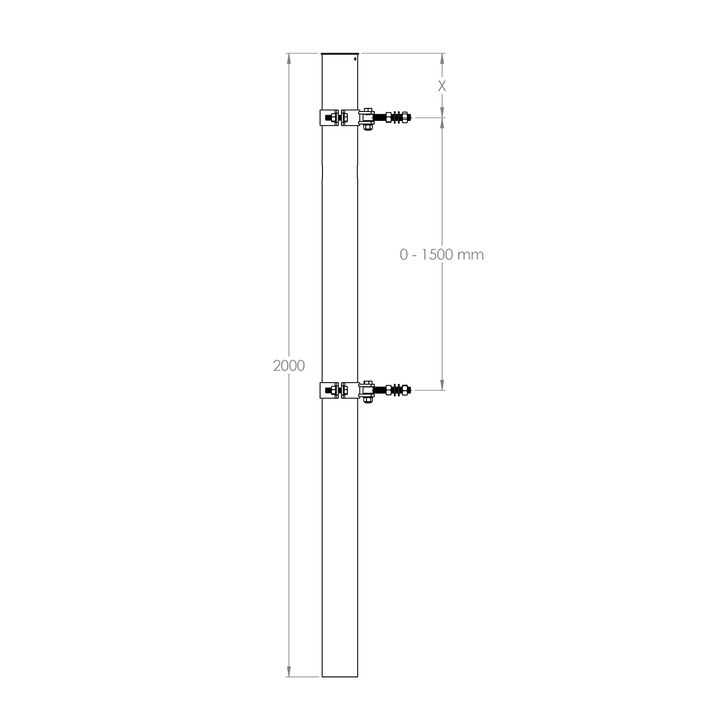

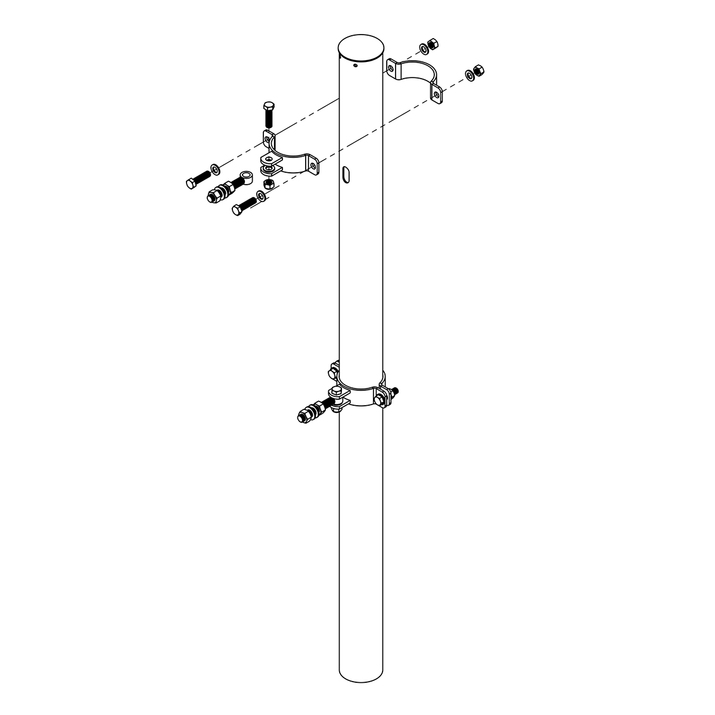

If you are going to use the post as a hanging post, two 05-B hinge brackets are needed (not included, available as accessory). Make sure that all brackets are securely fastened and that the gate opens and closes without problem. The angle of the bracket can be changed for simple adjustment of the gate's position.

Technical specifications

• ø 114 x 2000 mm

• Material thickness 3.5 mm

• Hinge thickness M20 bolt

• Hinge length 120 mm

• Hot-dip galvanised

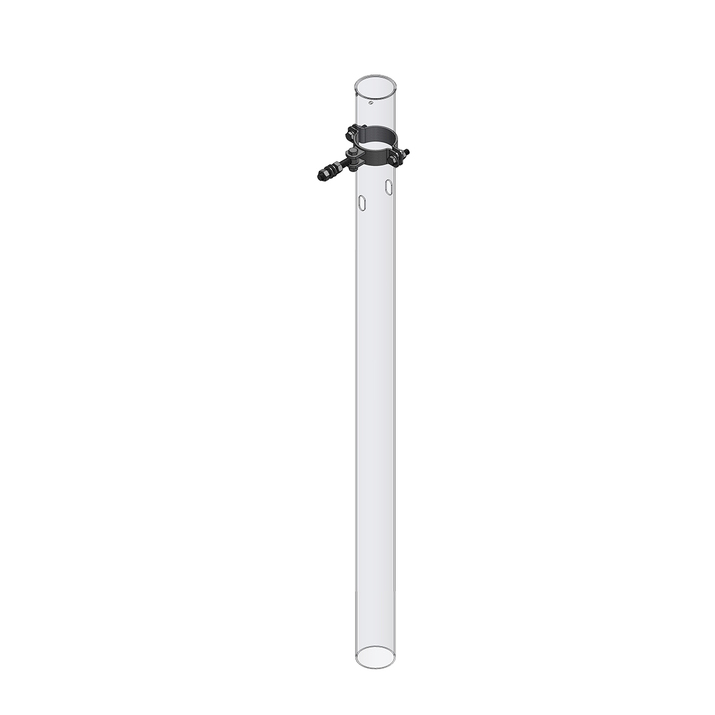

Some images show with wall mounts (not included).
